ebike 36V 48V 52V 1000W-1500W 35A 3-Mode Sine Wave Brushless Controller with UKC1 SW900 EN06 LCD Display Electric Bicycle
Product details
| Management number | 227366118 | Release Date | 2026/05/09 | List Price | US$43.60 | Model Number | 227366118 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

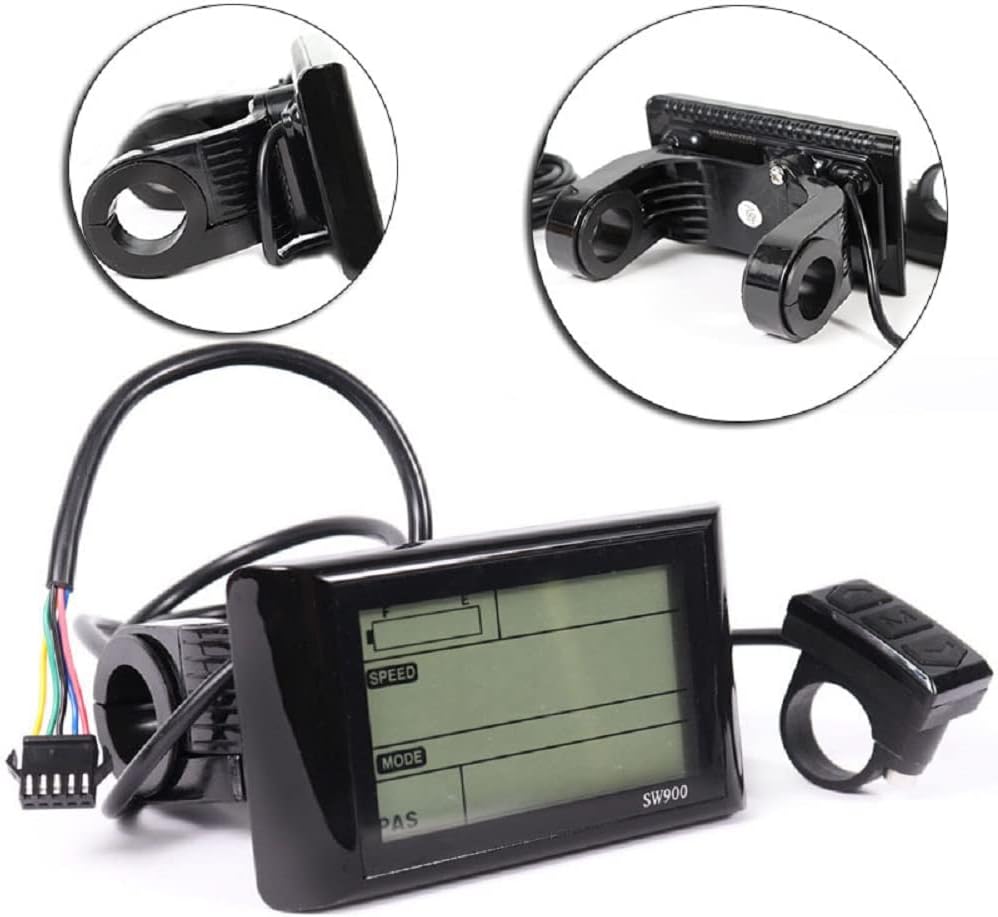

Parts Including: 1. 15 MOSFET 35A 36V 48V, 52V Universal Voltage 1000W-1500W Intelligent 3-mode Sine Wave Controller 2. 36V, 48V, 52V,72V UKC1 Colorful Display , SW Display, EN06 (Optional) Advantage: 1. Support dual mode: support hall sensor or Non-hall sensor 2. Self Learning: Even wrong 3-phase combination between motor and controller, doesn’t matter, above self-learning process can correct it! 3. All protection make it long life and safe: over/under voltage, over current, over load, over heating, anti-runaway, locked-motor protection 4. Best heat sinking with Aluminium Case 5. Black anodized Aluminium Controller Case against scratch Technical Data: General Specification: 1. Rated Power: 36V 612W/ 48V 816W/ 52V 884W 2. Peak Power: 36V 1260W/ 48V 1680W/ 52V 1820W 3. Brake: Low Voltage Brake 4. Alarm: Low Voltage Alarm 5. Rotor Position Detecting Method: Hall sensor 6. Size: 212x86.5x48.5mm 7. Net Weight: 610g 8. Waterproof Grade: IP65 FAQ: 1. How shall I match my motor for first time use? (Very Important) 1). Lift your motor wheel off ground (very important) 2). Connect Self-learning plug 6-8 seconds 3). You will see motor wheel rotate slowly 4). Please check whether rotation direction is correct (a). If correct direction, then keep 6-8 seconds, then disconnect (b). If reverse direction, then disconnect and plug again till get correct rotation direction, then keep 6-8 seconds, then disconnect 5). Motor and Controller Pairing finished! 2. Can I use this controller without display? Yes, you can use this controller without display, just need to connect jumper connector
- Controller Size 212x86.5x48.5mm
- Support dual mode: support hall sensor or Non-hall sensor
- Self Learning: Even wrong 3-phase combination between motor and controller, doesn’t matter, above self-learning process can correct it!
- All protection make it long life and safe: over/under voltage, over current, over load, over heating, anti-runaway, locked-motor protection
| ASIN | B0BTPDL9TP |
|---|---|
| Size | Small |
| Color | 35A Controller and SW900 Display |
| Theme | Electric Bike |
| Wattage | 1820 watts |
| Bike Type | Electric Bike |
| Brand Name | HALLOMOTOR |
| Model Name | ebike |
| Brake Style | Disc |
| Skill Level | Intermediate |
| Manufacturer | Hallomotor |
| Power Source | battery |
| Seat Material | Vinyl or Plastic |
| Is Autographed | No |
| Wheel Material | Aluminum |
| Suspension Type | Dual |
| Number of Handles | 2 |
| Additional Features | Digital Display |
| Frame Material Type | Aluminum |
| Included Components | 15 MOSFET 35A 36V 48V, 52V Universal Voltage 1000W-1500W Intelligent 3-mode Sine Wave Controller, 36V, 48V, 52V,72V UKC1 Colorful Display , SW Display, EN06 (Optional) |
| Is Assembly Required | No |
| Age Range Description | Adult |
| Bicycle Gear Shifter Type | Twist Grip |
| Specific Uses For Product | Electric bike control and display |
